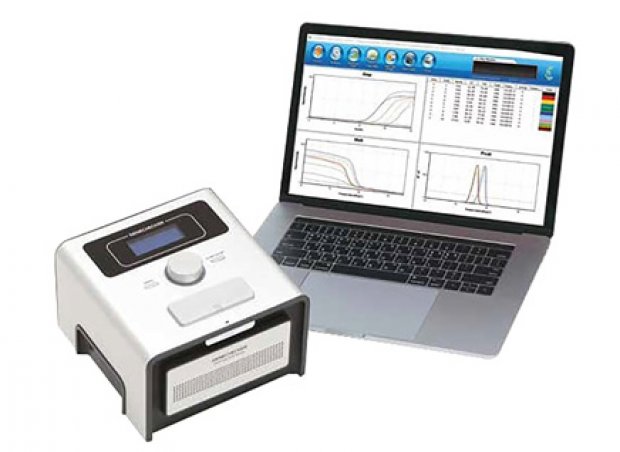

Model UF-150 Real-time PCR System

Fast and Affordable qPCR platform that benefits your application

FEATURES

Patented chip based design and ultra-fast ramping provides extremely rapid output.
“40 cycles in 20 minutes”

Real-time analysis through dedicated software, GeneRecorder

Small footprint(20cm x 20cm x 12.5cm) and light weight ideal for lab
as well as on-site testing environments

Battery operation possible using optional power cable

One-step reverse transcriptase PCR available for RNA applications

Main Screen

Standard Analysis Screen

SPECIFICATION

Operating Mechanism

Precise Control of Peltier Element

Temperature Accuracy

± 0.5°C

Temperature Uniformity

± 0.5°C (Well to Well)

Temperature Stability

± 0.5°C

Ramping Rate

8.0°C/ second

Range of Temperature Setting

35~99℃ (1.0℃ Increment) for RT Step / 1~99℃ (1.0℃ Increment) for PCR

Sample Format

Polymer Based 3-Dimensional Microfluidic Chip

Number of Sample per Run

10

Required Sample Volume

10μl

Typical PCR Duration

Less than 20 Minutes for 40 Cycles (without RT Step)

Method of Detection

Analysis of Digitized Fluorescence Signal

Display

Text LCD (4 Line)

Integrated Memory

Saves up to 12 PCR Protocols

Type of Excitation

High Brightness LED

Wavelength

455nm ~ 465nm

Number of Detection Channel

1(FAM, SYBR Green)

Method of Fluorescence Measurement

Integrated Camera Module

PC Connection

USB 2.0 A to B (PC to Device, Only available through GENERECORDER)

Power (Wattage)

AC 110-240V (50-60Hz) input / DC 12V Output (120W)

Dimension / Weight

200(w) x 200(d) x 127(h) mm / 2.6kg

Cat. No. Description Pack Size

1199100101 GENECHECKER® UF-150 Real-time PCR System 1 SET

1699100500 Optional Power Cable for Car Cigarette Power Socket 1 SET

You can download further information from below section.

New sample format and state-of-the-art hardware technology makes the difference

adopted special polymer chip (Rapi:chip™)
which enables even faster thermal treatment of the reaction samples
it than the case of using PCR tubes at conventional
PCR instruments. 8 °C/sec The average ramping speed of the instrument reaches 8°C/second for both heating and cooling through its sophisticated thermal cycling mechanism.

Innovative detection mechanism ensures reliable results of anlaysis.

Integrated CMOS module of UF-150 system fully monitors and records the fluorescence signal of samples during reaction process and the recorded signals are processed and displayed within GeneRecorder software for real-time analysis. UF-150 system provides precise result of reactions using its unique data processing method at affordable price as it doesn’t use photodiode based optical system which is relative costly and being commonly used at conventional real-time PCR systems.
