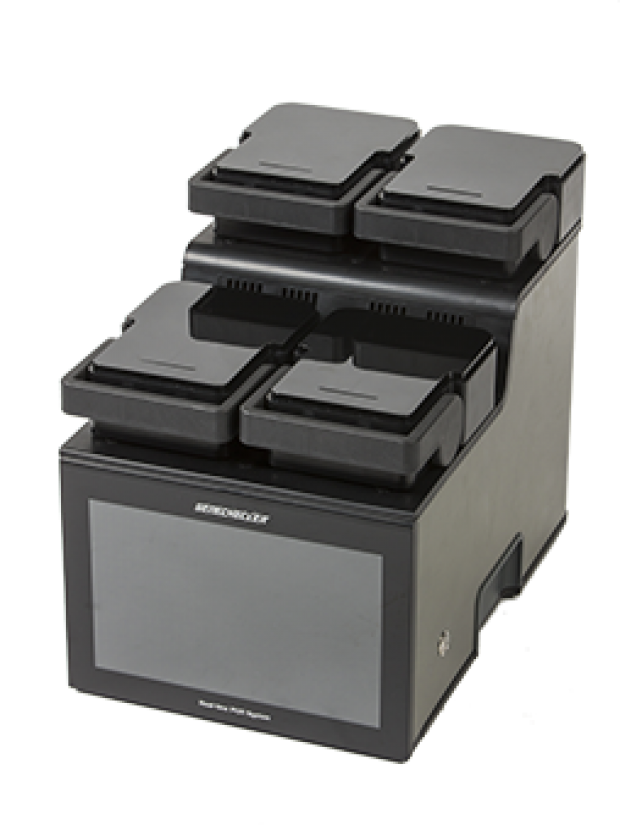

Model UF-340 Four-in-One Real-time PCR System
4-in-1 Individual Testing Module To Increase Your Molecular Test Efficiency
FEATURES
4 individual testing modules in 1 device to increase test efficiency and versatility”.
Patented chip based reaction provides rapid output – “40 Cycles in 20 minutes”.
10.1” Wide LCD Touchscreen and intuitive user interface to make the test simple and easy.
INTUITIVE USER INTERFACE MAKES THE TEST SIMPLE AND EASY
-
Main screen of GENECHECKER® UF-340.
-
Check Operation Status of 4-in-1 screen.
-
Check PCR results of different modules at once.
-
SPECIFICATION
Operating Mechanism
Precise control of peltier element
Temperature Accuracy
± 0.2°C
Temperature Uniformity
± 0.2°C (well to well)
Ramping Rate
8.0°C/second
Range of Temperature Setting
1 ~ 99°C (0.1°C resolution)
Sample Format
Polymer based 3-dimensional microfluidic chip
Number of Sample per Run
40
Reaction Volume
10μl
Method of Detection
Measurement of fluorescence signal using CMOS module
Display and User Interface
10.1 inch TFT display capacitive touch panel
Type of Excitation
High brightness LED
Detection Channel
FAM and ROX
Emission Wavelength
FAM : 472nm / ROX : 570nm
Power
AC 100-240V (50-60Hz) Input
Connectors
USB Type A 3 ports, LAN 10/100
Dimension
260(w) x 398(d) x 328(h) mm
Weight
13.7kg
ORDERING INFORMATION
Cat. No. Description Pack Size
1499100100 GENECHECKER® UF-340 Four-in-One Real-time PCR System 1 SET
9699100100 Rapi:chip™ 10-well PCR Chip (S-Pack), Standard Pack 48 pcs / PK
9699100101 Rapi:chip™ 10-well PCR Chip (M-Pack), Medium Pack - 8 PK of S-Pack 384 pcs / PK
9699100102 Rapi:chip™ 10-well PCR Chip (L-Pack), Large Pack - 16 PK of S-Pack 768 pcs / PK
